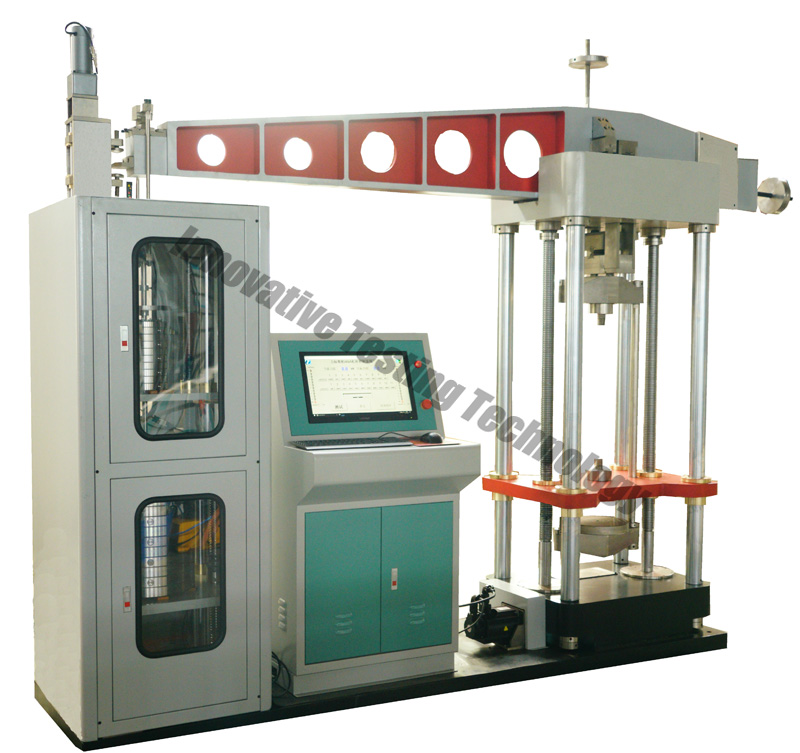

CX-5826 Computer-controlled Lever-amplification Force Standard Machine

Time：2022-05-09Popularity：18


Application

It used to calibrate standard force measuring devices (better than grade 0.3) and dynamometer (better than grade 0.1).

技术规格和性能指标 Technical Parameters
Range （kN）	准确度等级 Accuracy Class	放大比扩展不确定度（%） Uncertainty	力值误差（%） Accuracy	力值重复性（%） Repeatability	灵敏限 limited sensitivity
10	0.01级	0.01（包含因子k=2）	≤0.01	≤0.005	空载:≤0.1N满载:≤0.001% No-load:≤0.1N full-load:≤0.001%
60	0.01级	0.01（包含因子k=2）	≤0.01	≤0.005	空载:≤0.1N满载:≤0.001% No-load:≤0.1N full-load:≤0.001%
100	0.01级	0.01（包含因子k=2）	≤0.01	≤0.005	空载:≤0.1N满载:≤0.001% No-load:≤0.1N full-load:≤0.001%
300	0.01级	0.01（包含因子k=2）	≤0.01	≤0.005	空载:≤0.1N满载:≤0.001% No-load:≤0.1N full-load:≤0.001%
600	0.01级	0.01（包含因子k=2）	≤0.01	≤0.005	空载:≤0.1N满载:≤0.001% No-load:≤0.1N full-load:≤0.001%
1000	0.01级	0.01（包含因子k=2）	≤0.01	≤0.005	空载:≤0.1N满载:≤0.001% No-load:≤0.1N full-load:≤0.001%

Remarks：

The machine can be customized to meet customer requirements.

All the information above may be updated at any time，the information is subject to technical parameter in our latest quotation.
