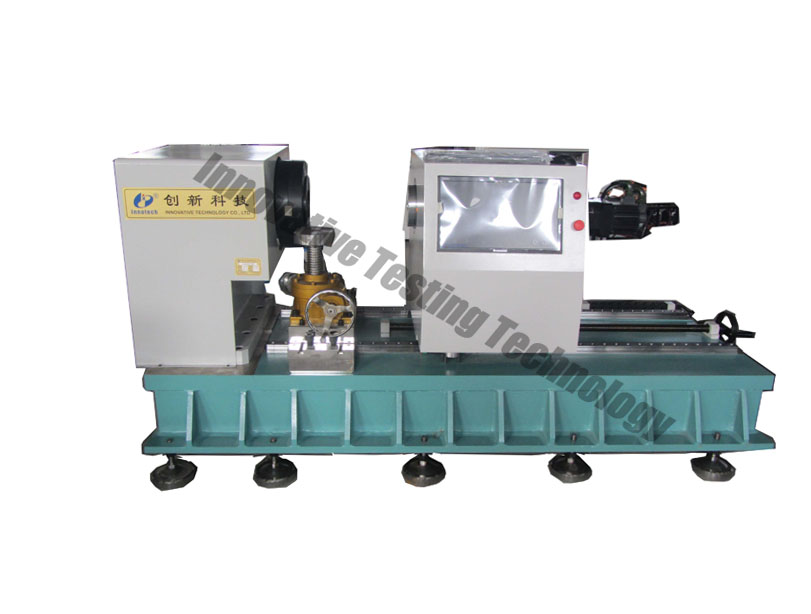

Application
It used to test the torque of Torque Wrench (Hydraulic , electric and manual),multiplier, Torque Sensor,etc.
技术规格和性能指标 Technical Parameters | |
最大试验扭矩(N.m) Maximum test torque | 1000 2000 3000 5000 10000 20000 50000 |
扭矩传感器精度 (%) Accuracy of torque sensor | 0.1 |
扭角显示分辨率(º) Display resolution of angle | 0.01 |
主动夹头转速(r/min) Rotate speed of driving dog | 0-5 (无级可调) 0-5 (step less adjustable ) |
扭转方向 Reverse orientation | 正、反两个方向 Forward and Reverse |
伺服动作模式 Servo action mode | 力矩闭环控制及角度闭环控制闭环控制系统 Moment closed-loop control and Angle closed-loop control |
控制方式 Control mode | 计算机自动伺服控制 Full automatic servo-control by computer |
采集系统 Acquisition system | 美国国家仪器 NI |
控制软件 Control software | 专业控制软件LABVIEW |
数据保存格式 Data saving format | EXCEL\ACCESS\TXT或客户指定格式 |
Remarks:
The machine can be customized to meet customer requirements.
All the information above may be updated at any time,the information is subject to technical parameter in our latest quotation.
