Application

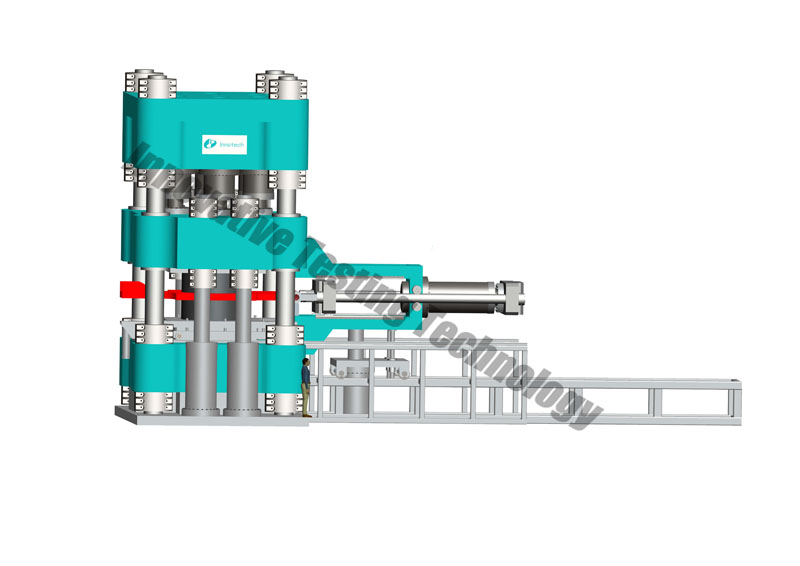

Load-shear Test Machine mainly used in the mechanical performance test of plate rubber support ，basin rubber support，spherical support for bridge and highway. This machine can make the following test：compressive strength and elastic modulus of recycled test，shear strength and elastic modulus of recycled test，ultimate pressure strength test，friction coefficient test and deformation testing of basin rubber support test for bridge and highway（axial and radial）.
技术规格和性能指标 Technical Parameters | |||||||||
垂直向压缩试验系统 Vertical compression system | |||||||||
垂直向最大力值（MN） Maximal force of Vertical direction | 5 | 10 | 20 | 30 | 50 | 60 | 100 | ||
力值测量范围（%） Measuring Range | 0.4～100 | 0.4～100 | 0.4～100 | 0.4～100 | 0.4～100 | 0.4～100 | 0.4～100 | ||
力值精度（ %） Accuracy | ±0.1 | ±0.1 | ±0.1 | ±0.1 | ±0.2 | ±0.2 | ±0.2 | ||
水平剪切系统 Horizontal shear system | |||||||||
水平剪切最大试验力（MN） Maximal horizontal shear force | 2 | 3 | 6 | 10 | 20 | 20 | 50 | ||
力值精度（%） Accuracy | ±1 | ±1 | ±1 | ±1 | ±1 | ±1 | ±1 | ||
转角试验系统 Deflection angle test system | |||||||||
转角试验最大力值（kN） Maximal force of deflection angle test | 300 2000 3000 或用户指定 300 2000 3000 or according to customer requirements | ||||||||
力值精度（%） Accuracy | ±1 | ±1 | ±1 | ±1 | ±1 | ±1 | ±1 | ||
Remarks：
The machine can be customized to meet customer requirements.
All the information above may be updated at any time，the information is subject to technical parameter in our latest quotation.
